1 X Pair Universal Gas Struts 100N 170mm Extended Length 6mm/15mm Rod/Cylinder

Be the first to review this product

$31.24 $31.24

You are purchasing a brand new, heavy duty, 1 x pair of gas struts. Designed for assisted lifting and provides controlled movement for a range of automotive and industrial purposes. The most common use is to provide control over the opening movement of heavy and potentially dangerous equipment from falling on your head such as bonnets, boots, canopies, flexiglass, doors, toolboxes, caravans etc. These gas struts are recommended for use with items around 10kg or 20kg. For example, if your car boot/bonnet is around 10Kg use 1 strut ONLY. If it weighs around 20kg use both struts (one on each side).

Availability:

In stock

SKU

STREET:170-100-6/15

Notify me when the price drops

Calculate Smartfreight rates for this product

Please specify quantity

Please enter street

Please enter street 2 (Optional)

Please enter city

Please enter province

Please enter post code

Please select country

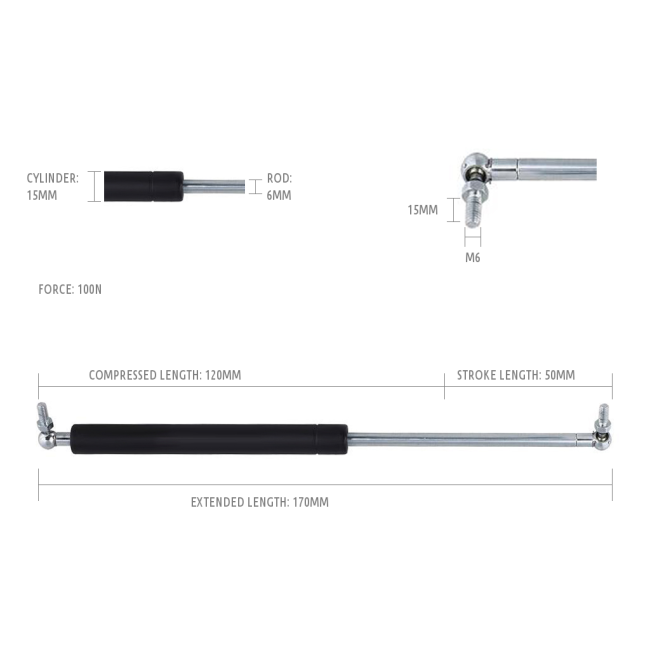

Product Overview

Extended Length	170MM long (when in open position)
Compressed Length	120MM (when fully closed)
Stroke Length	50MM
Force	100N
Rod	6MM
Cylinder	15MM
End Fitting Length	15MM
End Fitting Diameter	M6

Strut Force selection: The general rule is 10 Newtons of force can lift approximately 1kg

Disclaimer! The above are rough estimates and are not a rule! For complex and specific jobs you can use more complicated formula's to measure exact length and force of Strut you might require!

Do's

If gas struts are to be stored prior to use, the strut should be stored shaft down to lubricate the seal.
Do ensure that the end fittings are in line so that side load forces are not applied as a result of misalignment.
Caravan pop top gas struts should be replaced 4 at a time.
Ensure the gas strut's end fittings are fully screwed home.
Where ball joints are used ensure the ball stud is flush with the surface and tightened.

Don'ts

Do not scratch, dent, chip, bend or paint the rod.
Do not puncture or incinerate.
Do not lubricate or treat the gas strut in any way.
Do not replace 1 gas strut of a pair.
Do not weld replacement ends on gas struts

PLEASE NOTE YOU WILL RECEIVE 1 X PAIR (2PCS) GAS STRUTS
