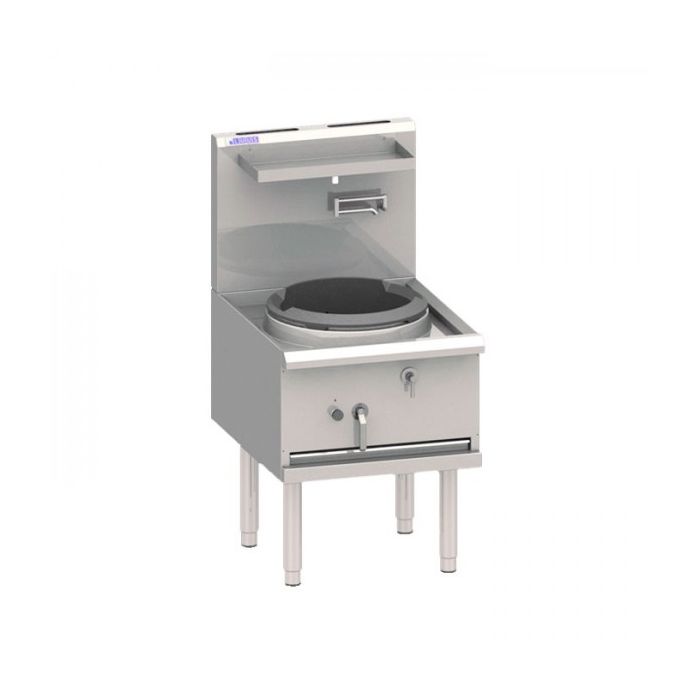

LUUS Asian 1 Duckbill Burner 420mm Compact Wok WZ-17C LPG

Compact Wok

• 90 mj 18 jet duckbill burners with pilot & FFD

• 420mm diameter large size cast-iron wok ring

• Air gap cooling system

• Quarter turn water control lever

• Folding rear laundry arm with front panel controls

• Front gutter design for easier cleaning

• Internal front heat shield panel

• Supplied with waste strainer

• Zinc-aluminium Alloy burner handles

Overall Construction

• Heavy duty construction

• Full skirt, enamelled cast-iron rings

• 1.5mm 304 stainless steel one-piece pressed deck

• 0.9mm 304 stainless steel condiment shelf

• Splashback 1.2 mm 304 stainless steel

• Front cover and hob 1.2mm 304 stainless steel

• Side panels 0.9mm 304 stainless steel

• Undertrays 0.7mm stainless steel

• Stainless steel removable legs

• 55mm height adjustment range

Dimensions

• 650mm x 800mm x 1300mm H

• Working height 850mm

• Weight 95kg

• Packed dimensions 700mm x 900mm x 1470mm H

• Packed weight 123kg

Connections

• Gas 3/4” BSP male

• Gas 90mm from left, 85mm from rear, 385m to floor

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 560mm from left, 85mm to rear, 385mm to floor

• Drain 1/1/4” BSP male

• Drain 80mm from right, 85mm from rear, 385mm to floor

Cleaning & Servicing

• Easy access to all parts & components from front

Options/Accessories

• Knee lever timer tap

• Replace Duckbill burners with Chimney burners

• 250mm and 500mm wide clip on shelves (front)

• Joining caps & strips

• RH and LH side shields

• Rear castors

• Extended warranty
