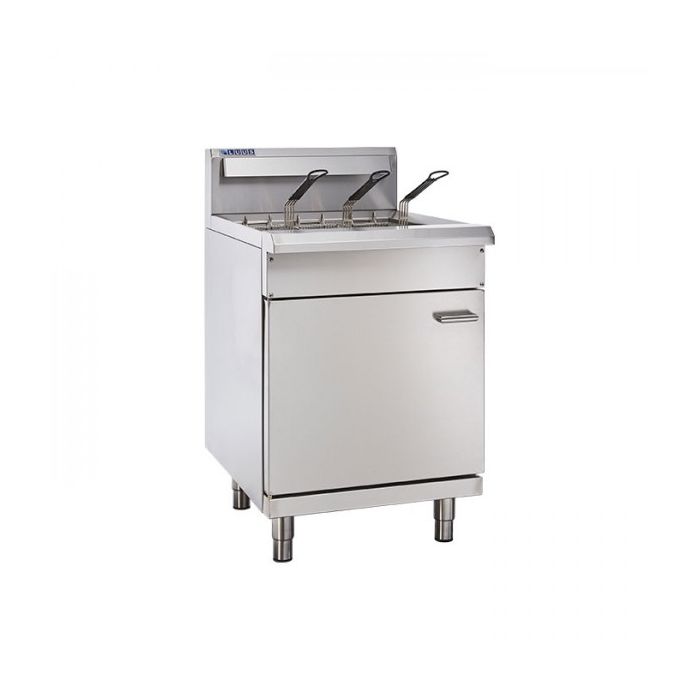

LUUS Professional 3 Basket Single V-Pan Fryer FV-60 NG

V-Pan Fryer

• 120mj jet burner with pilot, FFD and piezo ignition

• Fenwal thermostat valve with +/- 1° C tolerance

• Thermostat temperature range 150 - 200° C

• High temperature cut-out safety mechanism

• 304 grade 1.5mm stainless steel tank

• 25 litre tank capacity

• Includes 3 stainless steel fryer baskets

• 0.9mm stainless steel perforated fish/base plate

• Tank drainage valve at bottom front of unit

Overall Construction

• Heavy duty construction

• Constructed 0.9mm 304 stainless steel door

• High density Fiberfrax Durablanket insulation around tank

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Includes stainless steel legs

Dimensions

• 600mm x 800mm x 1100mm H

• Working height 900mm

• Weight 83kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 103kg

Connections

• Gas 3/4” BSP male

• Gas 225mm from right, 50mm from rear, 210mm from floor

• In-built gas regulator (specify Nat or LP on order)

• Drain 1 1/4” BSP male

• Drain 300mm from left, 70mm from front, 385mm floor

Cleaning & Servicing

• Easy access to all parts & components from front

• V-pan easy-to-clean design

• Rear basket support bar

• Removable baskets and inserts

Options/Accessories

• Additional fryer baskets

• Larger fryer baskets

• Joining caps

• RH and LH side shields

• Rear castors

• Extended warranty
