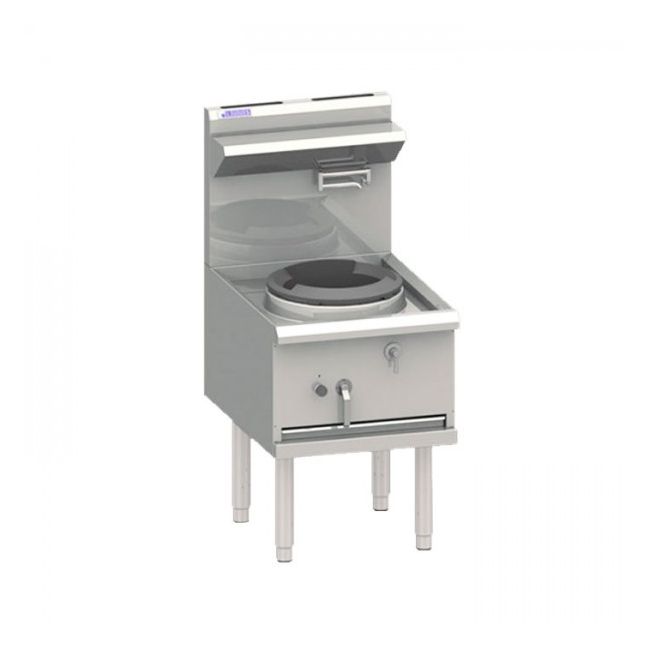

LUUS Asian 1 Chimney Burner 330mm Compact Wok WZ-1C LPG

Product Description
• Space-saving 800mm total unit depth
• 333mm wok ring suitable for standard-sized woks
• Chimney burners ideal for high heat/fast stir-frying
• Uses up to 90% less water than Traditional Woks
• Air gap design eliminates need for water cooling
• Machine pressed deck to prevent grime catchment
• Concealed ring lip prevents water from entering air gap
• Removable, vented rear condiment shelf
• Modular design to suit multiple WZ wok units
• Optional Duckbill and Dual Ring Burners no additional cost
• 24 months ‘Platinum Warranty’
• Easy to clean and service

Waterless Wok
• 110 mj 24 jet chimney burners with pilot & FFD
• 333mm diameter standard size cast-iron wok ring
• Air gap cooling system
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Wider front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles

Overall Construction
• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback and front cover 1.2 mm 304 stainless steel
• Integrated hob 1.5mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Undertrays 0.9mm stainless steel
• Stainless steel removable legs
• 30mm height adjustment range

Dimensions
• 600mm x 800mm x 1300mm H
• Working height 800mm
• Weight 85kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 110kg

Connections
• Gas 3/4” BSP female
• Gas 121mm from right, 84mm from rear, 425m to floor
• Supplied with gas regulator
• Water inlet 1/2” copper tube
• Water 61mm from right, 81mm to rear, 408mm to floor
• Drain 1 3/4” BSP male, drain outlet 2”
• Drain 122mm from left, 83mm from rear, 590mm to floor

Cleaning & Servicing
• Easy access to all parts & components from front
