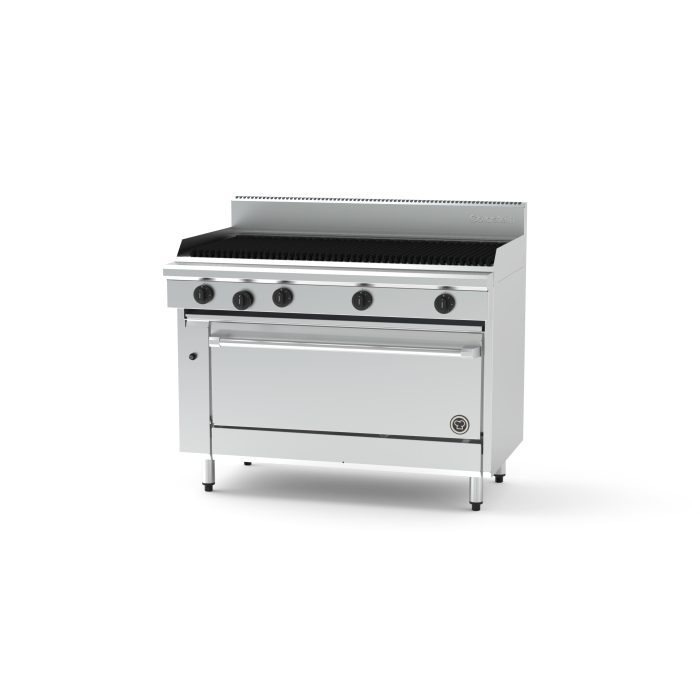

PF48Q40-X | 800 Series Oven Ranges

STANDARD FEATURES INCLUDE

• Heavy duty welded stainless steel body for rigidity and durability
• Fully welded surrounds for griddle and chargrill option
• The flexible modular cooktop design allows for various combinations of burners, griddle plates, and chargrill options (305, 610, 914 and 1219mm)
• Gas or electric static oven and fan forced oven options are available, all in gastronorm compatible sizes
• Constant pilot flame, maximises operating and energy efficiency
• Pilot flame failure on open burners, flame failure to oven burner
• Stainless steel fascia and sides, spill zone and drip trays for ease of cleaning
• Large, heat resistant reinforced control knob with easy to view settings and high to low flame control
• Ergonomic door handle and angled corners create a sleek look
• Griddle and BBQ section are on left hand side
• Adjustable legs 140-170mm
• Easy to service

Chargrill
Heavy duty cast iron reversible grates provide greater control when cooking, energy efficiency, and offer two char pattern options
2 levelling options – flat or gradient
2x 20 MJ inline radiant burners per every 305mm section
Ceramic rocks to increase heat retention and flavour

Oven
100°C – 280°C thermostatic control
Piezo ignition
Oven and door are fully insulated with vitreous enamel for even heat distribution and easy cleaning
GN 1/1 capacity with 3 position racking
Heavy duty chrome wire rack supports designed for easy removal

Oven Options
PF48Q40FF-X   gas fan forced oven
PF48Q40EFF-X   electric fan forced oven
PF48Q40E-X   electric static oven

Dimensions: 1219 x 800 x 1120 mm
